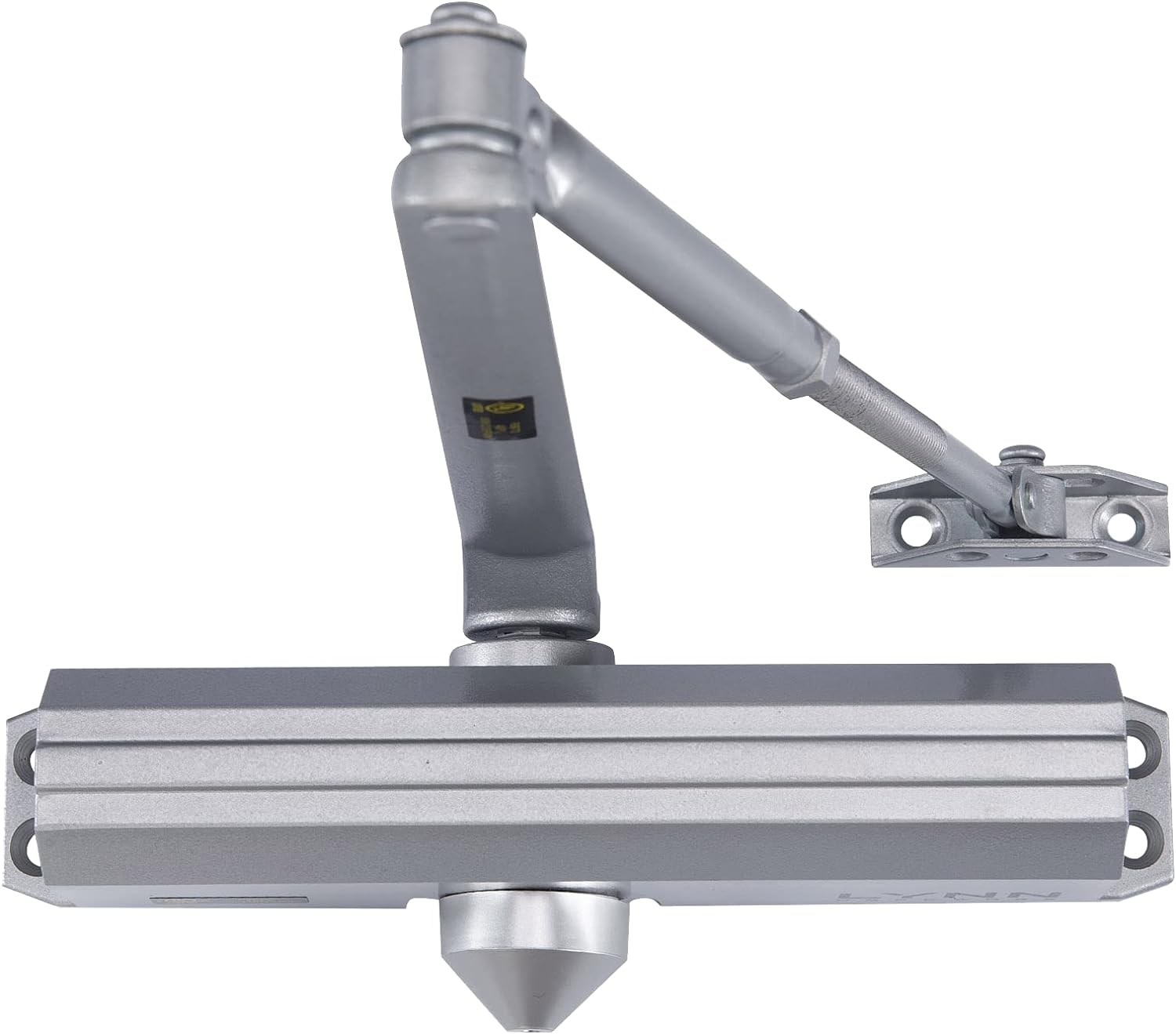

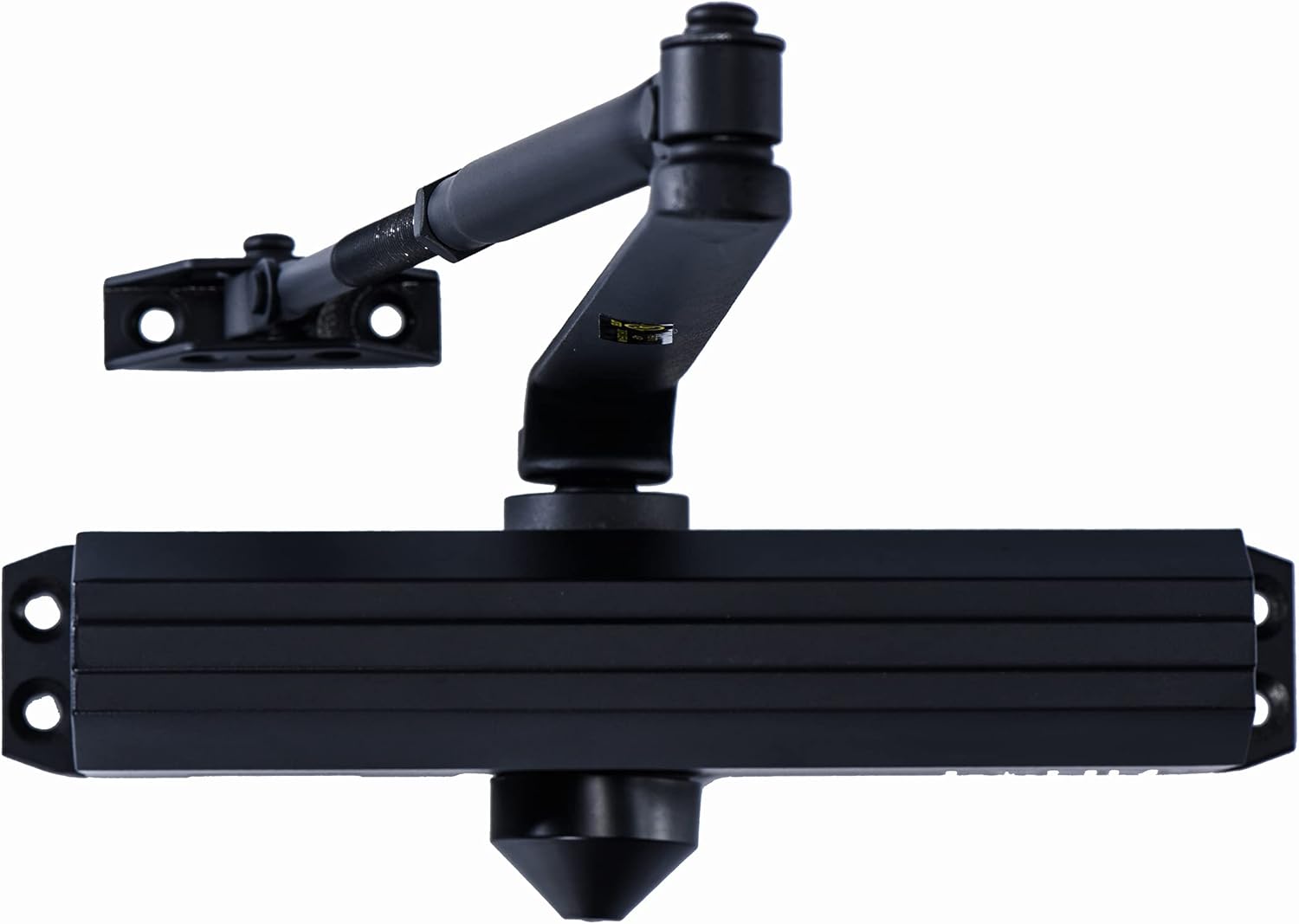

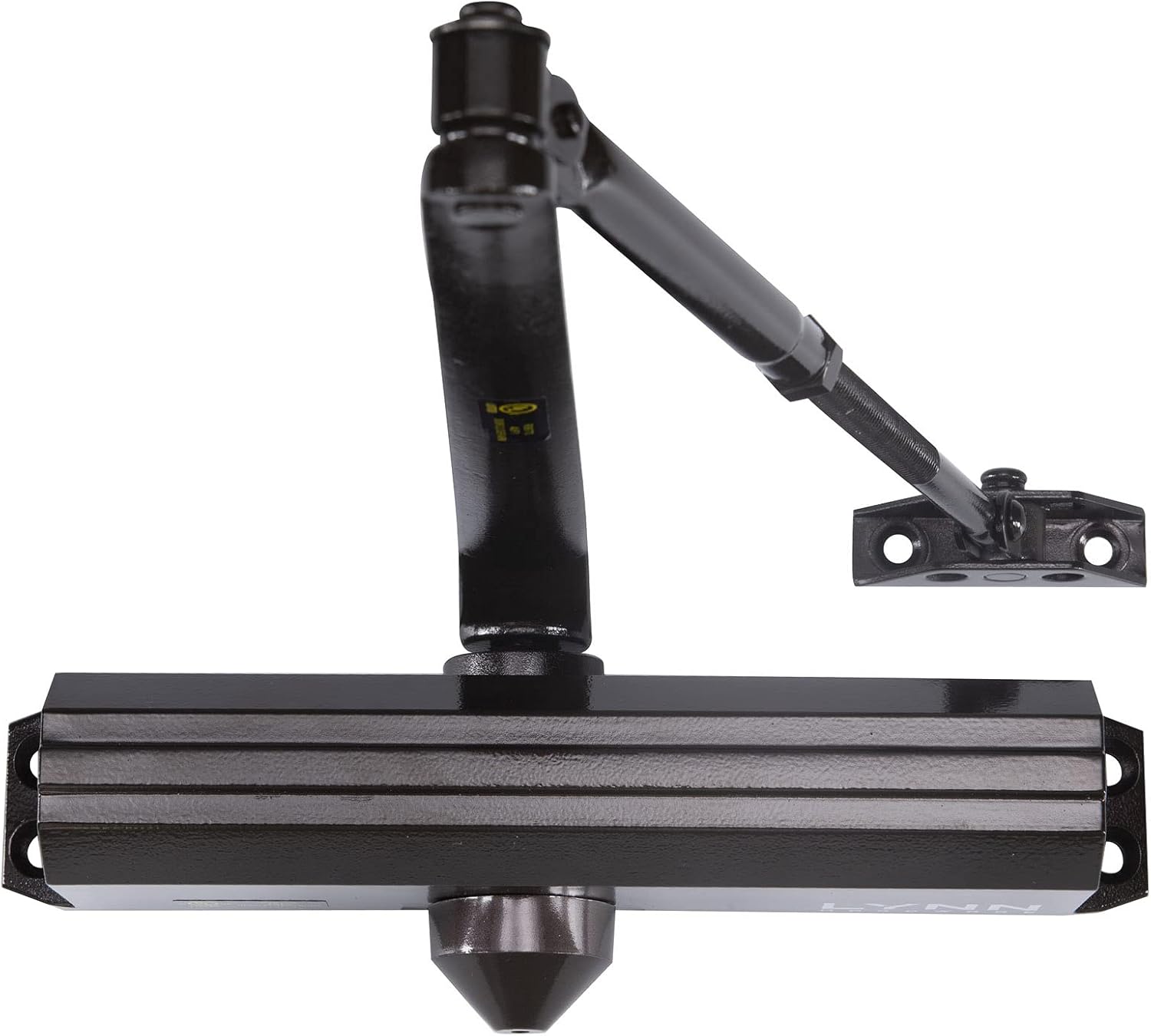

Medium/Heavy Duty Commercial Door Closer, Surface Mounted, Adjustable Size 1-6 J8085
Sale price
$24.50
Regular price $98.40
Skip to product information
USAGE: Perfect for medium and high traffic entrances such as aluminum storefronts, restaurants, and other public places. Use on doors weighing up to 330 lbs, Manufactured from Cast Aluminum, Wrought Steel arm, Heat Treated Piston, Powder Coated Finished Body to enhance corrosion resistance, Tri-Pack (Regular, Top Jamb, and Parallel Arm Mounts) standard, Non Handed, Adjustable Back Check ValveMATERIAL: Grade 1 Medium/Heavy Duty Cast Aluminum. Wrought Steel arm. Powder Coated Finished Body to enhance corrosion resistance. Heat Treated Piston.CERTIFICATIONS: BHMA/ANSI 156.4 Grade 1 to 2,000,000+ cycles, UL Fire Rated Listed - 3 hrsCOMPARABLE CLOSERS: Norton 1600, Dorma 640, LCN 1260, Cal-Royal 300, Hager 5300, Sargent 1130, Dor-O-Matic S660, Parker 900, Yale 50 and Lawrence LH5016 and Inox Hardware DC6114 and Inox DC6126Tri-Pack (Regular, Top Jamb, and Parallel Arm Mounts) standard, Non Handed, Adjustable Spring Power Size 1-6, Back Check, Closing Speed & Latching Speed valves all come standard
Medium/Heavy Duty Commercial Door Closer, Surface Mounted, Adjustable Size 1-6 J8085
Sale price
$24.50
Regular price $98.40
Shipping calculated at checkout.
| DC9016-BC-DA-ALUM (EXTRA HEAVY DUTY) | DC8016-BC-DA-ALUM (HEAVY DUTY) | DC7016-BC-ALUM (MEDIUM/HEAVY DUTY) | DC6003-BC-ALUM (MEDIUM DUTY) | DC5003-ALUM (LIGHT/MEDIUM DUTY) | |
|---|---|---|---|---|---|
| CLOSER BODY MATERIAL | CAST IRON | CAST ALUMINUM | CAST ALUMINUM | CAST ALUMINUM | CAST ALUMINUM |
| ADJUSTMENT VALVES | 4 valves (Closing, latch speed, Backcheck, & Delayed Action) | 4 valves (Closing, latch speed, Backcheck, & Delayed Action) | 3 valves (Closing, latch speed & Backcheck) | 3 valves (Closing, latch speed & Backcheck) | 2 valves (Closing and latch speed) |
| UL (3 hours) | ✓ | ✓ | ✓ | ✓ | ✓ |
| Door Weight Max | 330 pounds | 330 pounds | 330 pounds | 150 pounds | 150 pounds |
| Door Width Max | up to 60" | up to 60" | up to 60" | up to 36" | up to 36" |
| BHMA ANSI A156.4 | Grade 1 | Grade 1 | Grade 1 | Grade 2 | Grade 2 |
| Power Size | Adjustable Power 1-6 | Adjustable Power 1-6 | Adjustable Power 1-6 | Fixed Power #3 | Fixed Power #3 |
| Usage | Main entrances, Heavy Traffic areas and extra duty applications | High traffic interior and exterior Doors | Aluminum Store Fronts and Office Buildings | Offices and suite entry doors | Interior and Light Commercial Doors |
| Available Finishes | Aluminum, Dark Bronze, Painted Brass & Matte Black | Aluminum, Dark Bronze, Painted Brass & Matte Black | Aluminum, Matte Black & Dark Bronze | Aluminum, Dark Bronze, Matte Black & Painted Brass | Aluminum, Dark Bronze & Painted Brass |
