20 ton Hydraulic Jack Cylinder Short Type Stoke 50mm Hydraulic Ram Industrial Lifting Jack T4604
20 ton Hydraulic Jack Cylinder Short Type Stoke 50mm Hydraulic Ram Industrial Lifting Jack T4604
1.This hydraulic jack is often used in power, chemical, steel, bridges, machinery and other industries! Home car type is not recommended
2.The utility model has the advantages of smaller size and greater working capacity, and has the functions of portability, flexibility, big jacking force, etc
3.When the hydraulic jack is used, the bottom should be flat and tough. Oil free wood panels to expand the pressure surface, to ensure safety. Iron can not be used instead of planks to prevent sliding.
4.When lifting requires a smooth, heavy load slightly to check whether there is any abnormal situation, if there is no abnormal circumstances to continue jacking. Do not arbitrarily lengthen handle or excessive operation.
5.Without overloading or exceeding height. When the sleeve appears red line, indicating that has reached the rated height, should stop lifting.
Product Description

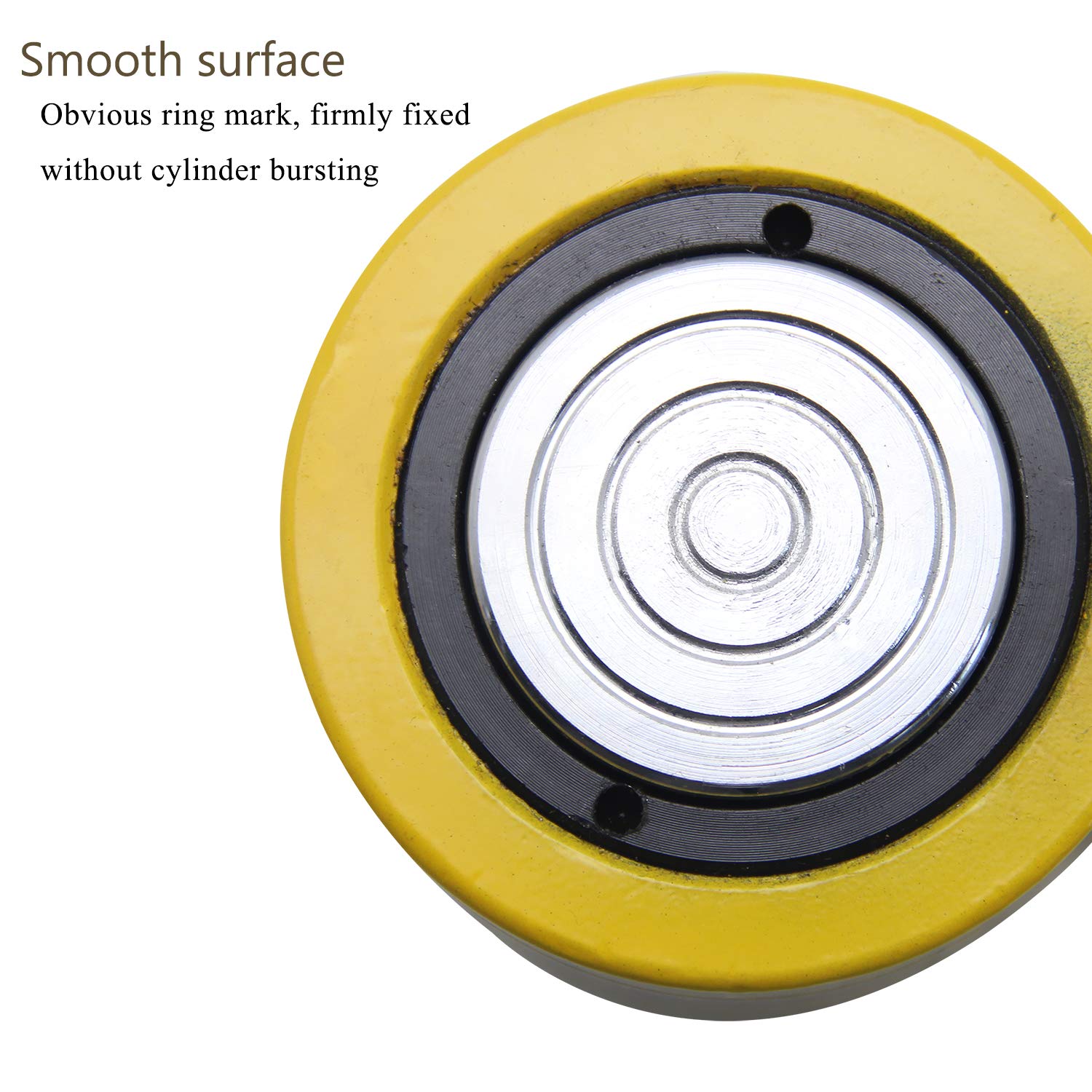

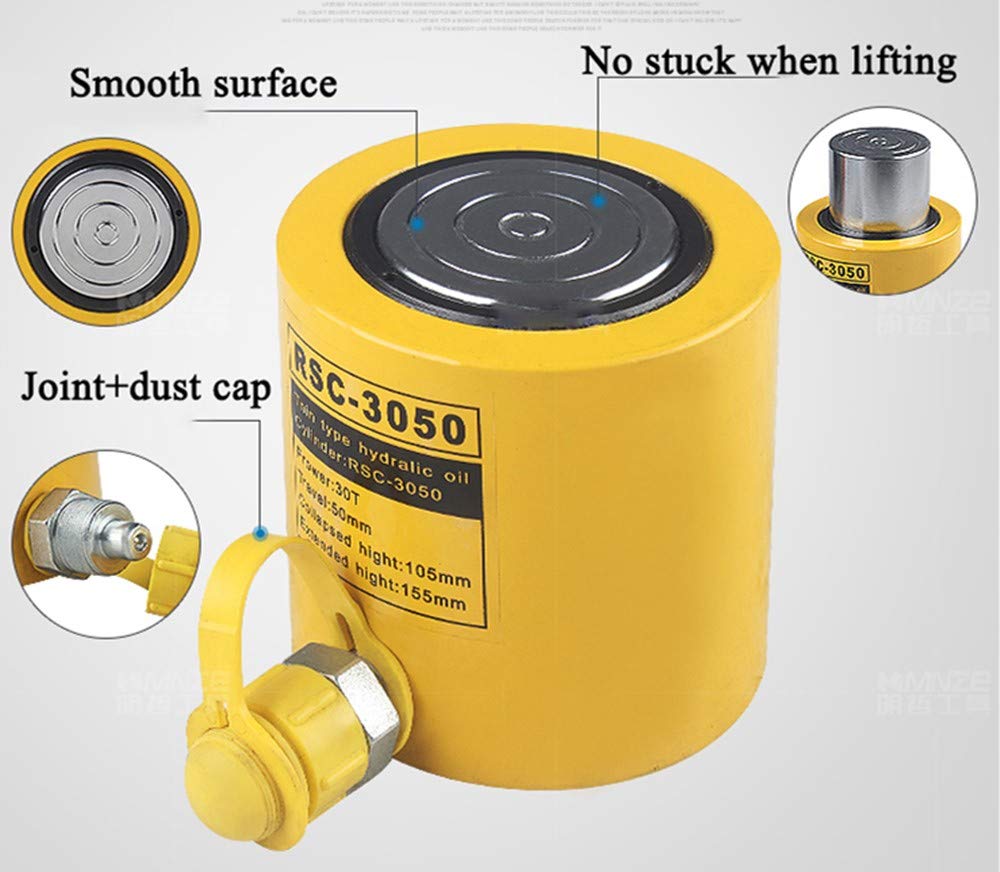

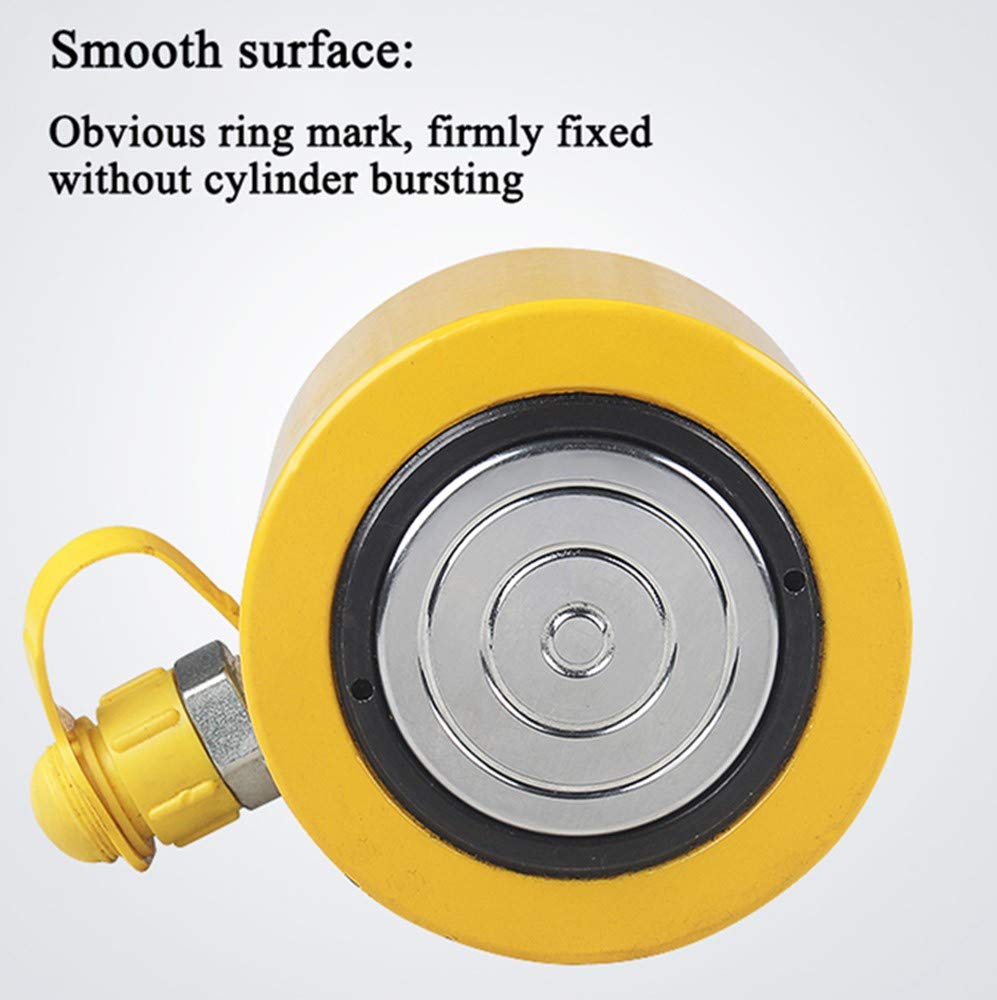

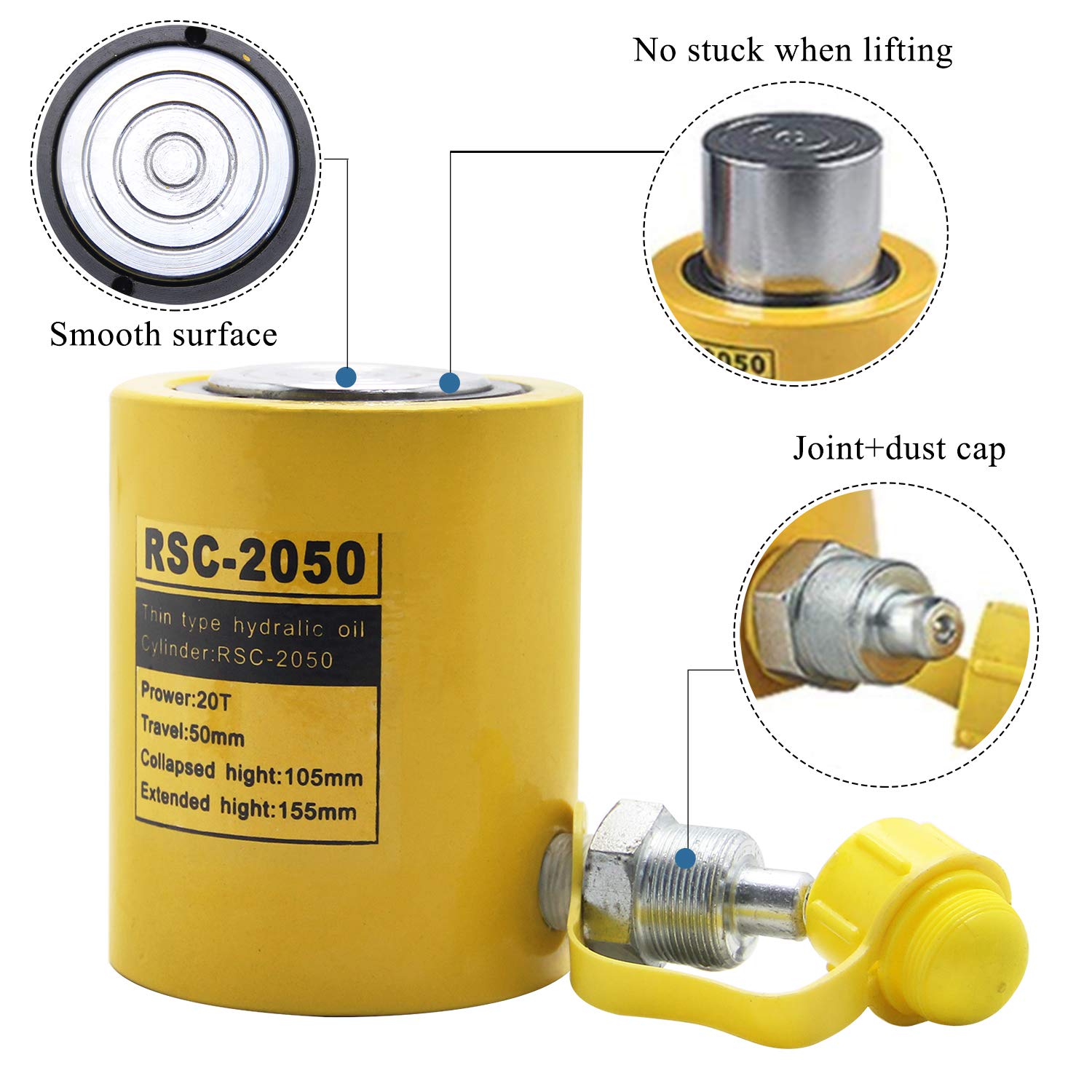

Smooth surface: Obvious ring mark, firmly fixed without cylinder bursting

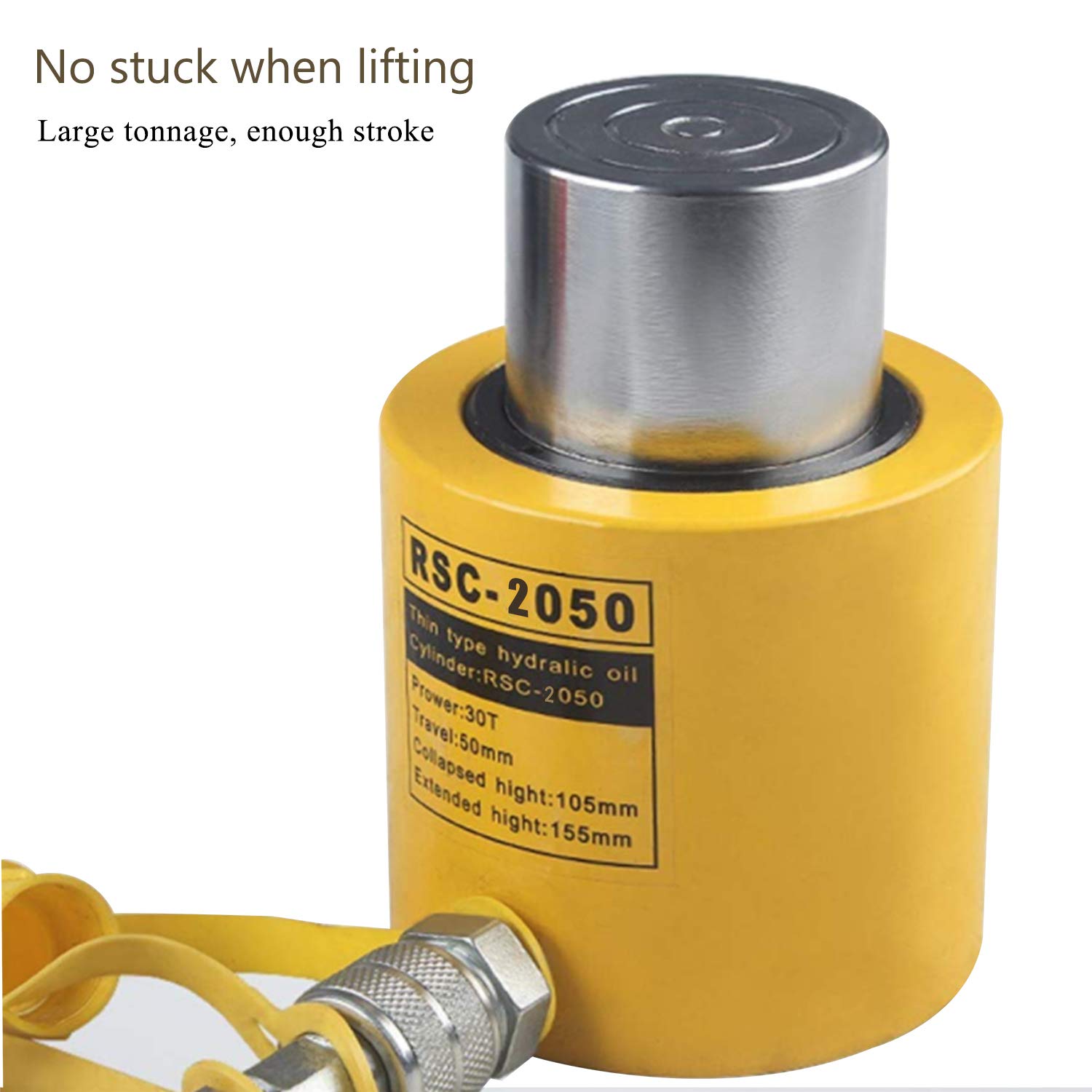

No stuck when lifting: Large tonnage, enough stroke.

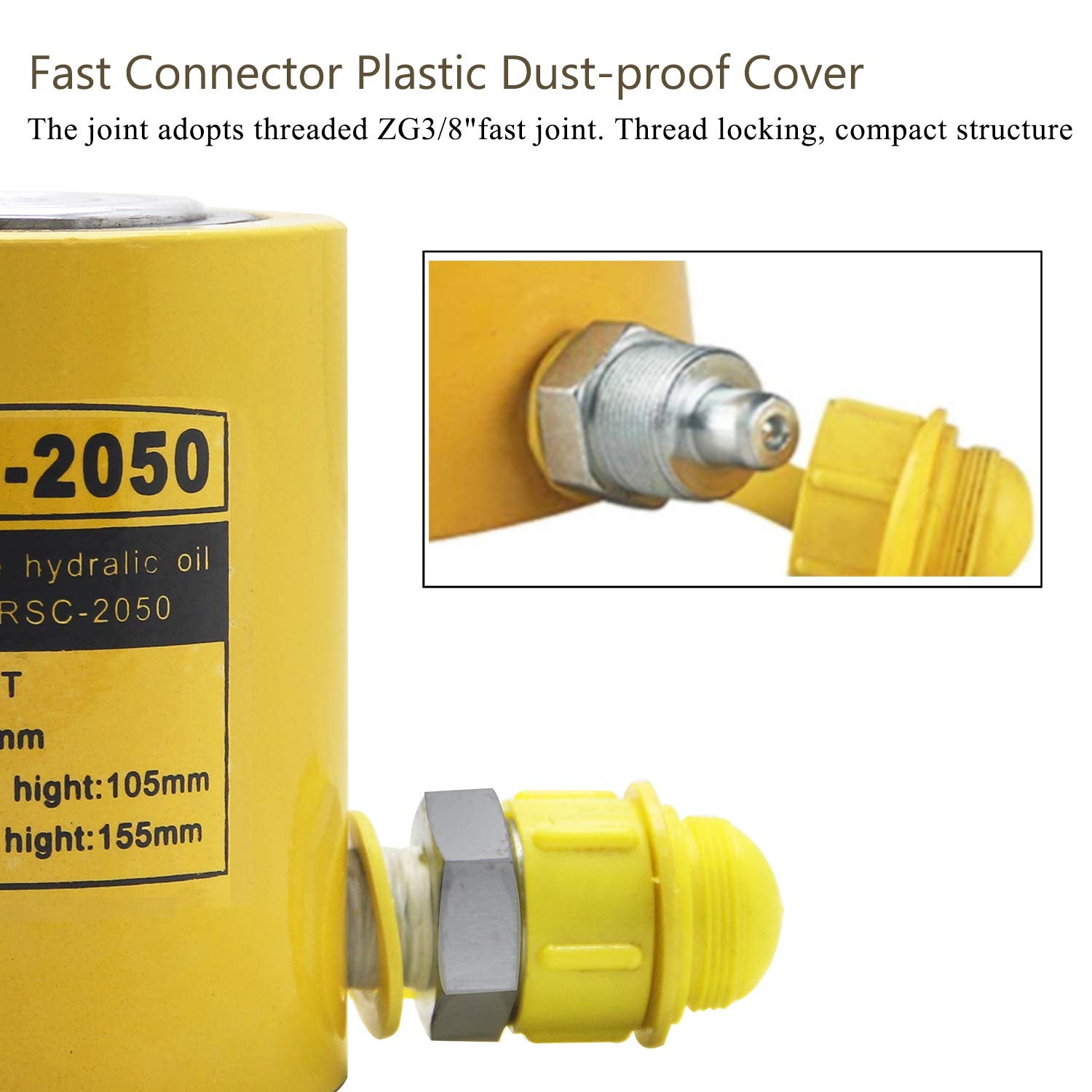

Fast Connector + Plastic Dust-proof Cover: The joint adopts threaded ZG3/8' fast joint. Thread locking, compact structure.
This product is a split type product, which needs to be used with manual hydraulic pump or electric pump
This hydraulic cylinder is often used in power, chemical, steel, bridge, machinery and other industries, not for the CAR.
(1). when several hydraulic jacks work at the same time, they should be directed by someone to make the lifting or falling simultaneously. Two adjacent hydraulic jacks shall be supported with wooden blocks to ensure that the gap is secured against sliding.
(2). when using hydraulic jack, always pay attention to the sealing part and pipe joint part, and must ensure its safety and reliability.
(3). hydraulic jacks are not suitable for sites where acids, alkalis, or corrosive gases are applied.

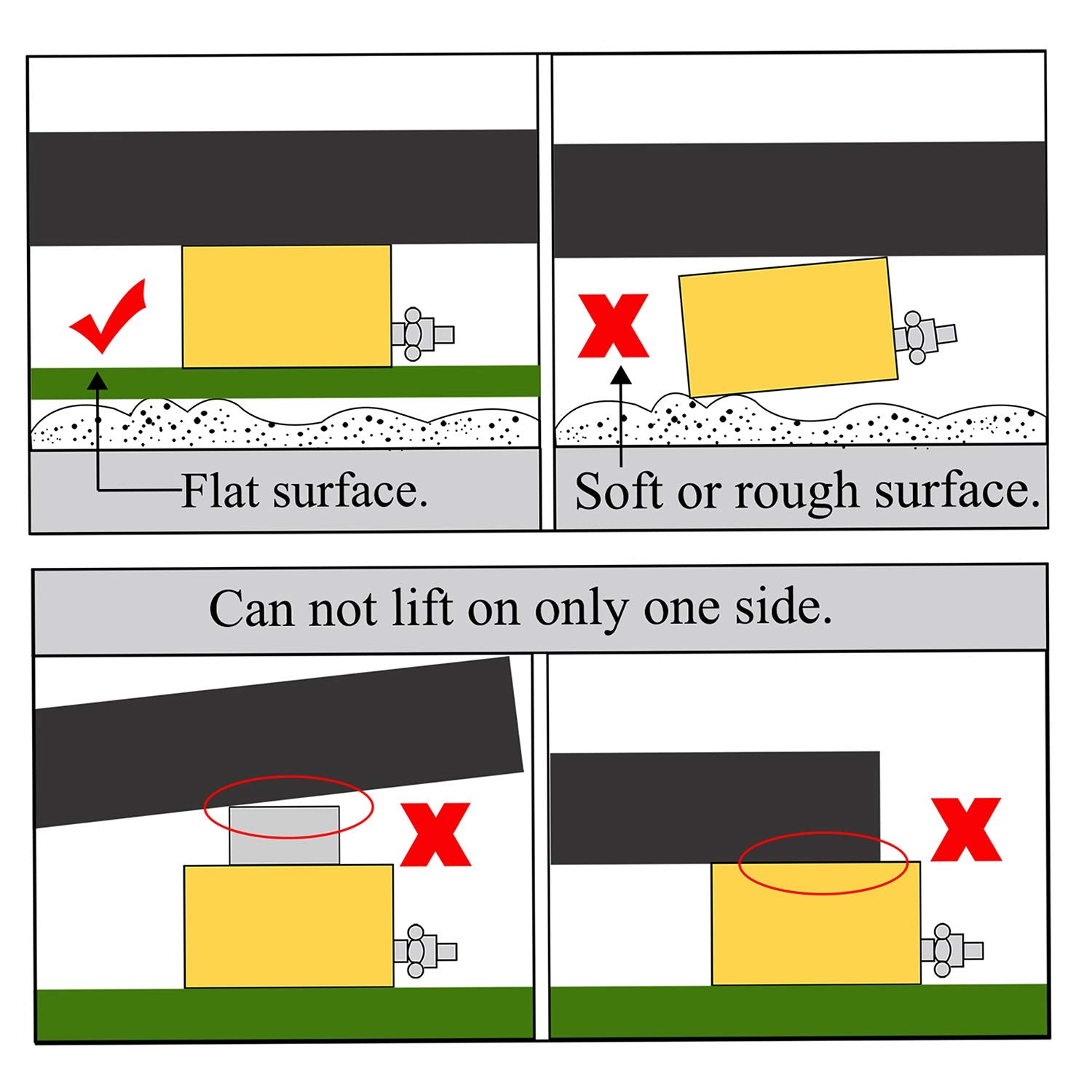

Note: In order to operate correctly, all cylinders need to be connected to a solid lifting surface. The use of cylinders on sandy, clay or loose surfaces can lead to cylinder damage.
Technical Parameter

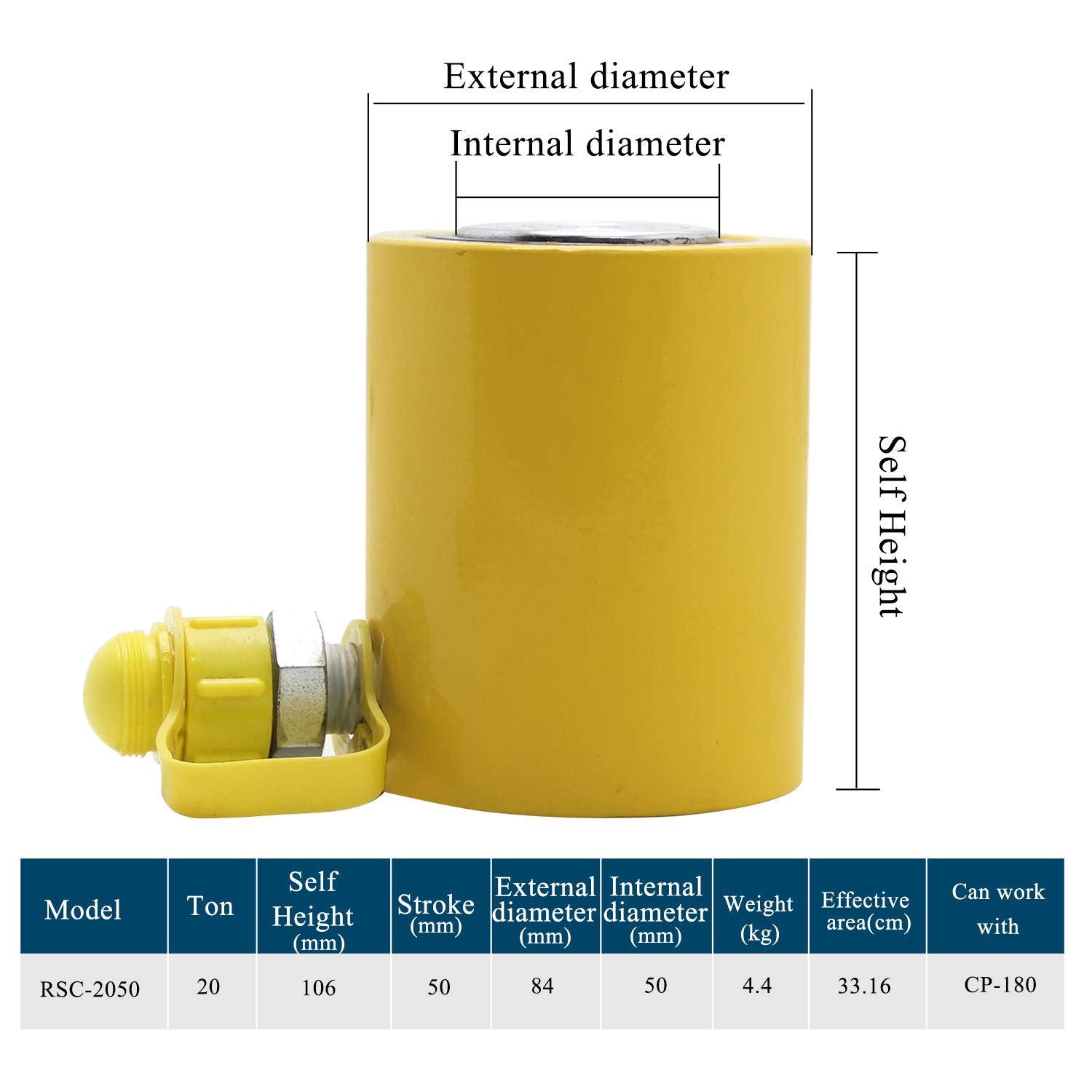

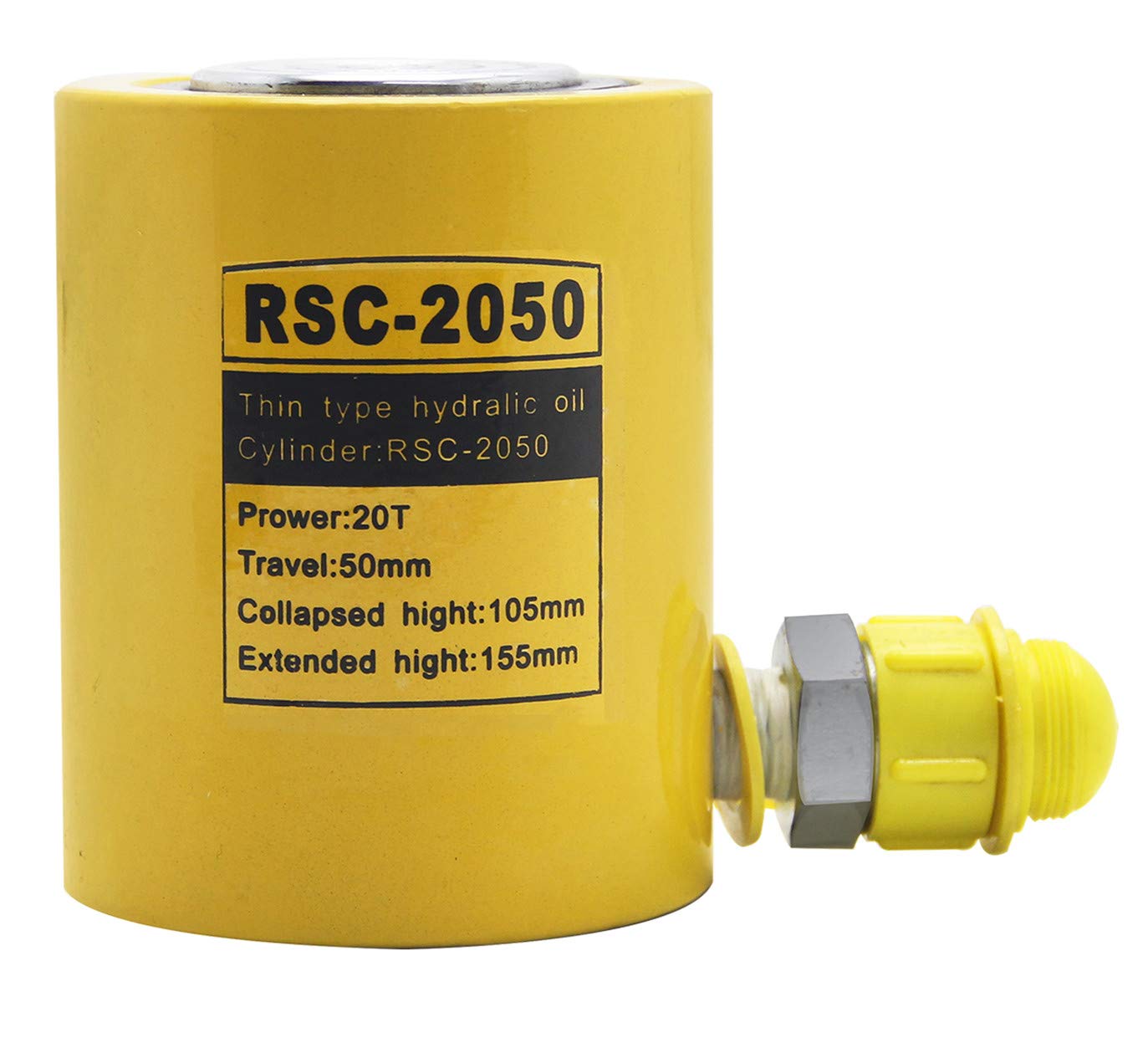

Model:RSC-2050; Tonnage (T): 20; Self Height(mm):106; Stroke(mm):50;
External diameter(mm):84; Internal diameter(mm):50; Weight(kg): 4.4 ;
Effective area(cm): 33.16; Can work with: CP-180 hydraulic pump
If you have any problems, please send emails to us freely.
