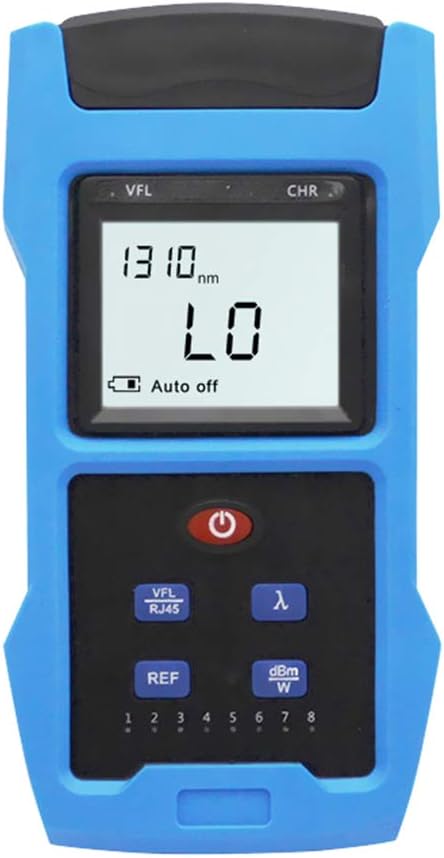

Optical Power Meter and Visual Fault Locator 3 in 1 Fiber Light Tester, Pack of 2 Z678
Sale price
$17.99
Regular price $59.83
Skip to product information
Function: can measure 6 standdard wavelengths 850/1300/1310/1490/ 1550/1625nm , test range: -70dBm~+10dBm;10Mw 650nm VFL frequency:0Hz/2Hz;RJ45 testing function.
Support automatic shutdown, Support wavelenghth memory function,Support user self-calibration fuction.
The light power meter & VFL ,Test precision, fine workmanship, easy to carry,completely replace the optical power meter and red pen 2 products. Come with English manual
One Year Warranty and Whole life Technology Support
Optical Power Meter and Visual Fault Locator 3 in 1 Fiber Light Tester, Pack of 2 Z678
Sale price
$17.99
Regular price $59.83
Shipping calculated at checkout.
Function: can measure 6 standdard wavelengths 850/1300/1310/1490/ 1550/1625nm , test range: -70dBm~+10dBm;10Mw 650nm VFL frequency:0Hz/2Hz;RJ45 testing function.
Support automatic shutdown, Support wavelenghth memory function,Support user self-calibration fuction.
The light power meter & VFL ,Test precision, fine workmanship, easy to carry,completely replace the optical power meter and red pen 2 products. Come with English manual
One Year Warranty and Whole life Technology Support
Specification
Calibration Wavelength:800~1700nm
Optical Connector:FC/SC
Detector Type: InGaAs
Measurement Range: -70 ~ +10dBm
Accuracy: ±3%(-10dBm 22℃)
Standard wavelength: 850, 1300, 1310,1490,1550,1625nm
VFL:30mW 650nm light source; frequency:0Hz/2Hz
Working temperature:-10~+50℃
Storage temperature :-20~+70℃
Auto off time:10Min
Power supply:18650mAH Lithium battery
Working time:200 hours (without back light)
Dimension(mm): 8x4.3x1.6cm
Weight: 280g
Package incdluing
1x 3-IN-1 Fiber Optical Power Meter
1x SC adapter
1x User Manual
1x Charger
1x RJ45 testing Remote
